Brackets for movable external blinds OpenUpSystem
Brackets for movable external blinds OpenUpSystemย is a system with which you can make outdoor shutters of wood or aluminium for building a terrace, balcony, shed or gazebo. The design of the brackets allows smooth movement of the wooden boards or slats. The system of brackets with inserted boards or aluminium slats will allow you to quickly build a movable wall.
Terrace blinds protect from the sun. When closed, they effectively shade the built-up area. Shields against cold wind and driving rain. Secure before snow cover.
Want to make it easier to enclose your terrace or balcony? Order ready-made terrace blind sets.
The product includes:
- few handles (left and right). Handle dimensions: 9.8 x 2 x 58.2 cm,
- assembly instructions,
- clips to connect together the brackets for the external blinds.

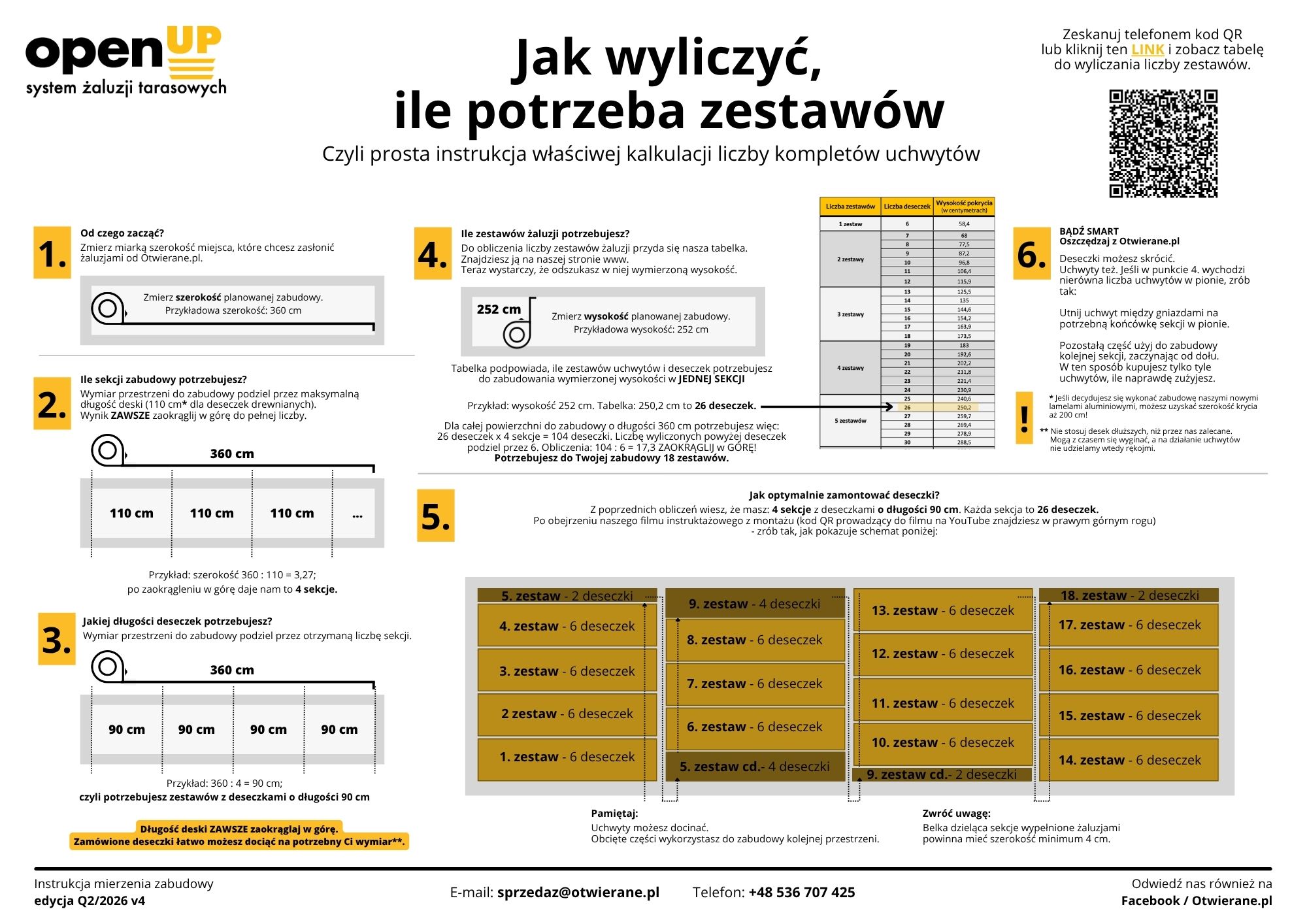

One a set of handles allows a surface height of 58.2 cm to be built up. The width of the development depends on the length of the boards/lamellas you use. Brackets suitable for 9.8 x 2 cm wood boards no longer than 110 cm or 9.9 x 195.5 cm aluminium lamellas no longer than 200 cm (horizontally mounted) and 250 cm (vertically mounted).
Mounting bracketsย
Need instructions on how to install the brackets for external blinds? You will find it in the downloads at the bottom of the page. Remember, you canย connect with clips. This will lengthen the height of the building. You can also cut them to size - a metal saw will come in handy. Also cut them if you want the individual sections to work separately.
Use of OpenUpSystem handles for moving blinds:
- buildings balconies,
- buildings terraces,
- buildings gazebos,
- buildings shelter,
- buildings pergolas
- buildings window openings.
Would you like to see how exterior blinds are built? Visit our gallery.
Important information about OpenUpSystem holders
Opened.pl is not responsible for defects of the products caused by improper use of the offered products, including the use of boards which are too long (above 110 cm) for the offered grips and the cross-section of the board other than 9.8 cm x 2 cm or aluminium fins with a cross-section of 9.9 x 1.95 cm. The customer fixes the boards longer than 110 cm at his own risk and the brackets used for this are not subject to the warranty. The same applies to lamellas longer than 200 or 250 cm (depending on the type of assembly: horizontal/vertical).
Want to keep up to date with our products? Follow us on Facebook: @OpenPl
The appearance of the product in the photo (in particular colour, texture) may differ slightly from the actual product.
Dimensions | Handle length 582 mm, moving arm size to fit a 98 x 20 mm board |
---|---|

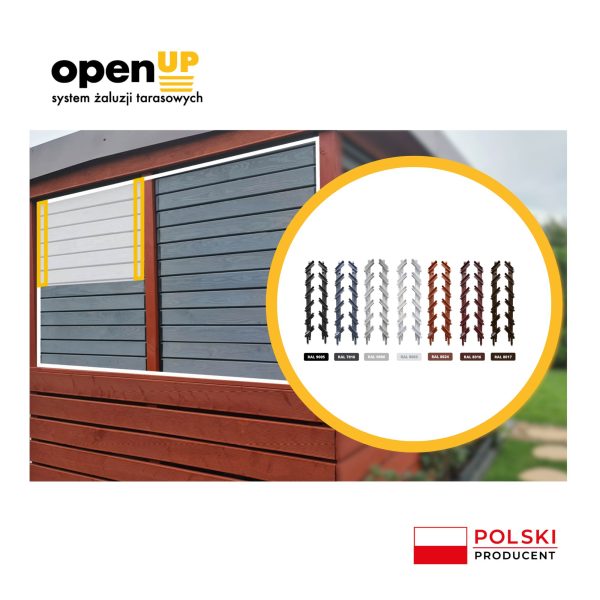

Colour of handles | white RAL 9003, light brown RAL 8024, dark brown RAL 8016, Anthracite RAL 7016, RAL 9005 black |
Weight | 350 g |
Possibility of combining modular handles | Yes |
Polish product | Yes |
Material | polypropylene mixed with glass fibre |
