Wooden partition with movable boards

What is the OpenUp System wooden partition with movable boards?

Wooden partition with movable boards OpenUp System is a finished wood louvre panel designed for installation as a side cover for a balcony, terrace, pergola or gazebo. The product is supplied as a complete frame with wooden planks OpenUp System to insert.

The glulam glulam frame acts as the load-bearing structure. It is responsible for the rigidity, geometry and proper operation of the entire structure. The movable planks allow the access of light, air and moisture to the sheltered space to be regulated.

OpenUp System movable wooden planks - adjustable instead of fixed wall

OpenUp System movable boards allow the angle of inclination to be adjusted. This allows you to control how the built-up space reacts to external conditions.

Adjusting the boards allows:

• control ventilation,
• limit excessive sunlight,
• change the level of visibility and privacy.

The set angle remains stable and the whole structure works predictably under varying weather conditions.

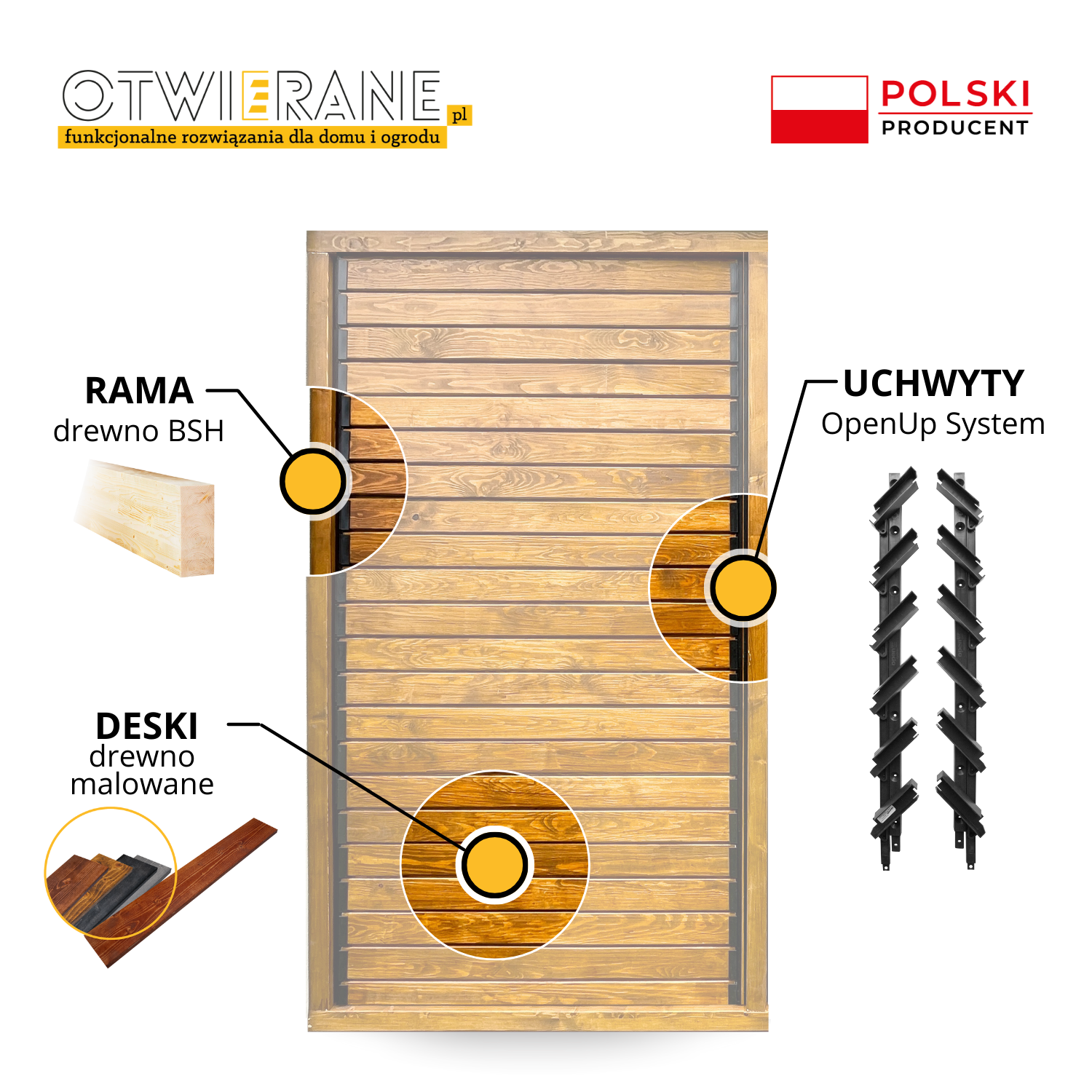

Wooden frame BSH 60 × 80 mm - structural element, not decorative

The frame is made of glued laminated timber BSH with a section of 60 × 80 mm .* This is a structural material used in elements exposed to loads and varying external conditions.

Such a solution:

• maintains correct frame geometry,
• reduces twisting and warping of the wood,
• ensures stable operation of the moving boards,
• allows permanent installation in the supporting structure.

The frame is not a finishing element - it is the load-bearing part of the partition.

Where a timber partition with patio blinds will work well

This variant is used as:

• balcony partitioning in single-family and multi-family dwellings,
• side terrace cover,
• the side wall of a wooden pergola,
• cover in gazebos and garden structures.

The natural texture of the wood allows the partition to match the wooden structures and facades, maintaining a consistent character of the development.

Delivery of a wooden frame with movable boards

You can pick up your ordered louvre panel directly at our head office or have it delivered by courier. The product is sent in two packages. One contains a pre-fabricated wooden frame with fitted OpenUp System handles, the other contains custom-fitted boards

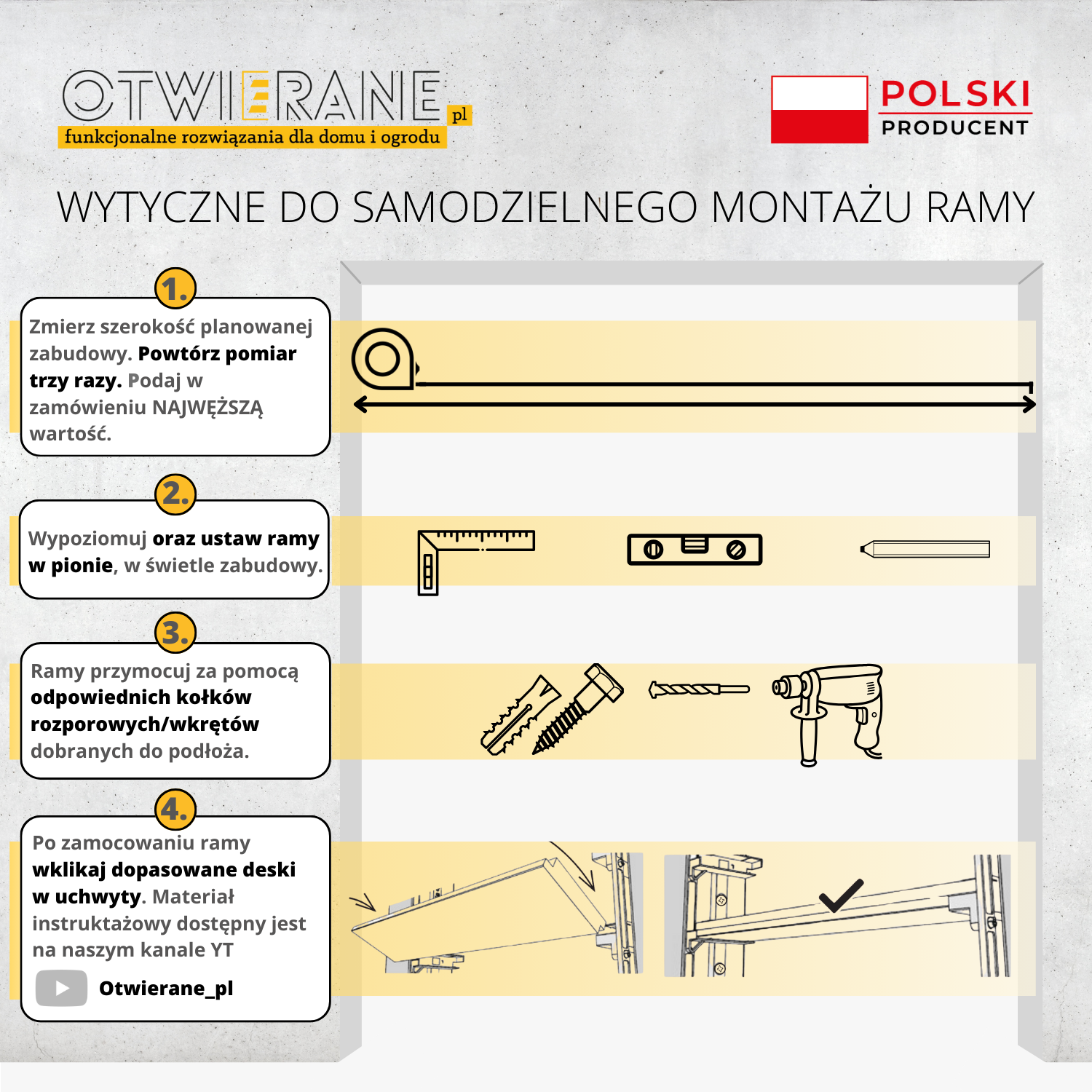

Fitting and adjusting a timber frame - what you need to know

The partition should be levelled and firmly fixed to the supporting structure - to the sides, bottom and top. Correct seating of the frame ensures that the moving boards work evenly.

Fix the frames to the substructure using the equivalent of wall plugs/screws matched to the substrate type.

If there is resistance to adjustment, it is possible to correct the setting by checking the geometry of the frame and reseating the boards in the brackets.

Wooden louvre panel vs. self-build system

The BSH timber-framed partition with movable planks is a finished development panel. Compared to systems built from individual components:

• does not require on-site framing,
• reduces assembly time,
• ensures a predictable structural effect,
• reduces the risk of measurement errors.

This is the solution of choice when the structure is to be materially coherent with a wooden pergola or enclosure.

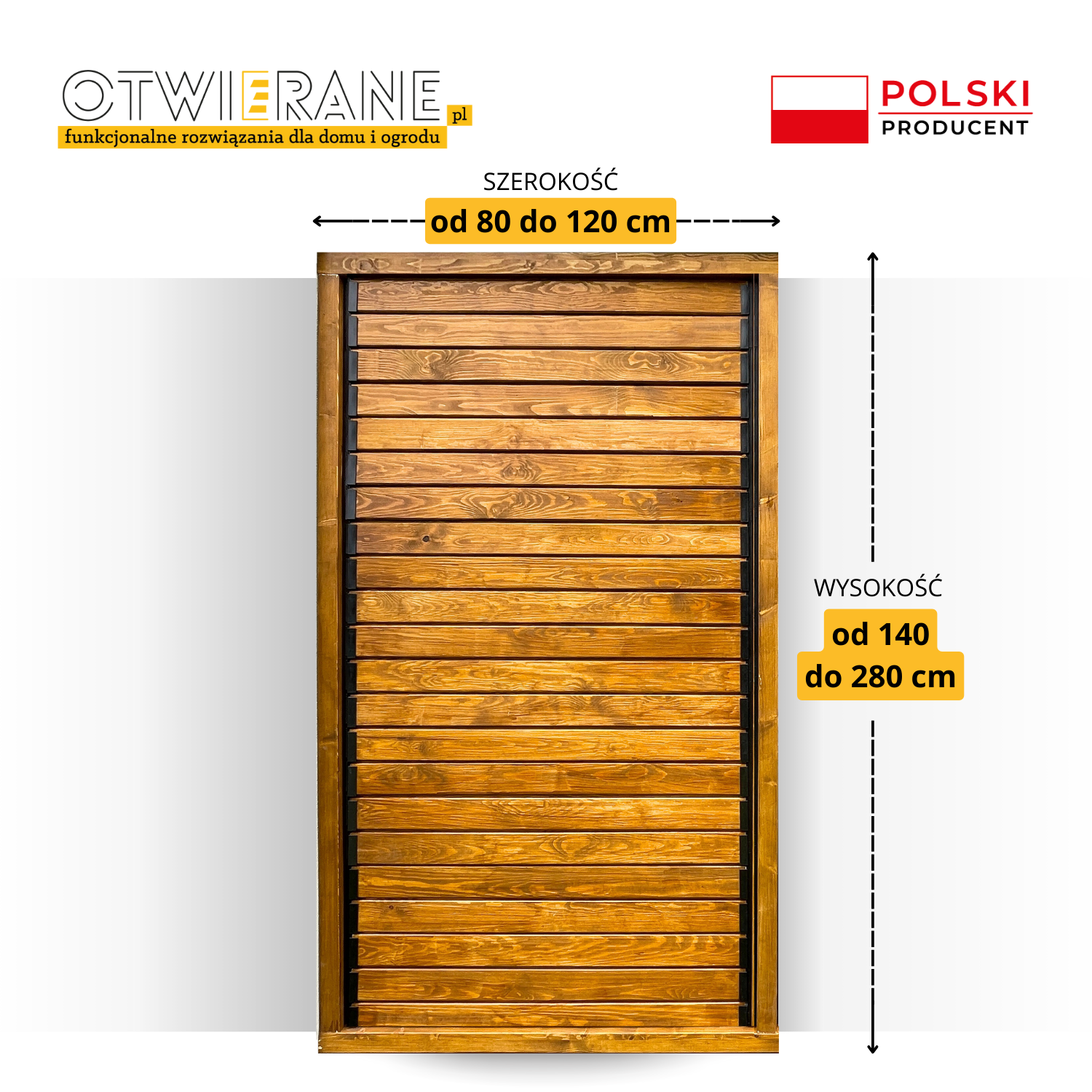

Correct measurement before ordering

The frame is a rigid element. Before ordering, measure the installation site carefully. Take the measurement at three points (bottom, middle, top) and use the narrowest dimension for your order.

This measurement will allow you to avoid a situation where the finished frame does not fit into the prepared space.

*The manufacturer allows a dimensional tolerance of up to ±3 mm in the frame section.
